Specifications
5G Wi-Fi Transmission Rate: 867Mbps
Wired Transfer Rate: 10/100Mbps
Wi-Fi Transmission Standard: 802.11ac
2.4G Wi-Fi Transmission Rate: 300 Mbps
Wi-Fi Supported Frequency: 2.4G & 5G
Supports WPS: Yes
Supports WDS: Yes
Number of USB Interfaces: None
WAN Ports: 2 x10/100Mbps
LAN Ports: 3
Function: Firewall, QoS
Application: HOME
Package: No
Standards And Protocols: Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac
Max. LAN Data Rate: 1000Mbps
With Modem Function: No
Type: Wireless
Brand Name: Tenda
Origin: Mainland China
Certification: CE, FCC, RoHS
Power input: 100-240V~50/60Hz, 0.4A
Power output: DC 9V1A
Description:
Tenda AC7 WIFI Routers 11AC 2.4Ghz/5.0Ghz Wi-fi Repeater 1*WAN+3*LAN 5*6dbi high gain Antennas Smart APP Manage Chinese Firmware
Overview
AC7 is a powerful and stable dual-band wireless router designed for large and multi-room users, equipped with an independent signal enhancement module, Beamforming + intelligent signal enhancement technology, and an external 5 * 6dBi high-gain antenna.
Product Features
Interfaces:
1*10/100Mbps WAN + port
3*10/100Mbps LAN ports
Wireless Data Rate
: 5GHz: 867Mbps
+ 2.4GHz: 300Mbps
5*6dBi High-gain Antenna
28nm High-Performance CPU
New MU-MIMO Technology
APP Intelligent Management

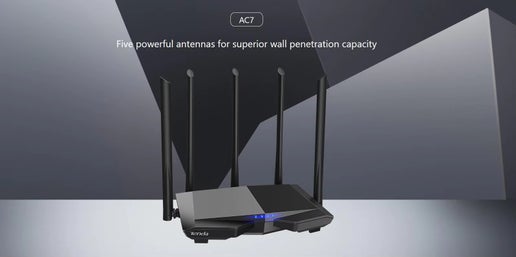

AC7 uses 5*6dBi high-gain omnidirectional antenna design, compared to ordinary 4*5dBi dual-frequency router, coverage efficiency increased by 50%.
Its 2.4GHz & 5GHz dual-band concurrency enables wireless connection speeds up to 1167Mbps, which is 70% faster than 300M / 450M routers.
Five 5dBi high-gain antennas for excellent wall penetration capacity. With five 5dBi high-gain omni-directional antennas, AC7 outperforms ordinary AC1200 routers with five 5dBi antennas over 50%* in terms of WIFI coverage, leading to higher wall penetration capacity.
External power amplifiers for fully expanded coverage with reliable WIFI.
Powered by external power amplifiers, AC7 blankets your whole home.
Up to 1167Mbps of concurrent data rate ensures smooth playback of videos.
AC7 is an AC1200 wireless dual-band router designed for larger households who have faster internet connections or multiple devices running real time services. It offers a combined dual-band wireless data rate up to 1167Mbps, an increase of 70%* on 300M/450M routers. With more band width in more places in your home, you can enjoy uninterrupted playback of 4K streaming, gaming and so much more.
28nm high-performance chip for lag-free massive online games.
Powered by the new generation of 28nm microchip, AC7 outshines ordinary router performance with 40nm chips in terms of performance heating and stability. Enjoy more of the things you love fully uninterrupted.
MU-MIMO technology for fast simultaneous communication with multiple clients
Compliant with 802.11ac wave2 standard, AC7, with the latest MU-MLMO technology, can communicate with multiple clients simultaneously and offer fast internet connection.
PPPoE account migration for easy router replacement
Still frustrated when replacing your original router but forgetting your PPPoE dial-in credentials? And suffered the painstakingly configuration?
AC7 allows you to replicate PPPoE dial-in credentials simply by connecting the WAN port of your old router to the LAN port of AC7, freeing you from painstaking configuration steps.
Remote management with Tenda WIFI App to bring everything under your control
AC7 supports Cloud-based management, Tenda WIFI App allows you to control internet accessibility of your children and block unauthorize users with a single tap.

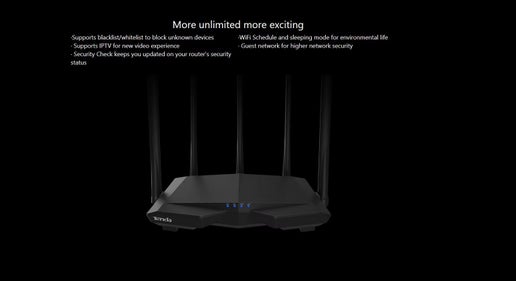

More unlimited more exciting.
Supports blacklist/whitelist to block unknown devices.
Supports IPTV for new video experience.
Security Check keeps you updated on your router's security status.
WIFI Schedule and sleeping mode for environmental life. Guest network for higher network security.
Note: This is original Chinese version Language Tenda Router.
Router setup steps
Support PC settings and application settings, you can change the settings page to the language of your country
1. Computer settings: please download Google Chrome in advance and open it http://192.168.0.1/ , this is the official setting page of Tenda router. You can translate it into the language of your country through Google Chrome, such as English, Russian, Spanish, etc, just follow the prompts to set it.
2.Application settings: please download Tenda WIFI app in advance
1.search for and download the app "Tenda Wi Fi" on Google play or app store.
2.turn on the Tenda (WIFI) router and the phone connection
1) Create a Tenda account and log in to your account;
2) According to the operation, click "dial up access" to enter your network account and password; (the router supports PPPoE protocol)
3) Click "WIFI password" and "new password" to complete.
4) Open the application and complete the WIFI settings.
